• The press machine is suitable for an high precision pressing of low hose diameter, starting from the micro hose Rapid System till pressing for 1/2".
• Particularly suitable for hose with an external diameter of :
5 - 5.5 - 5.9 mm
1/8" - 4/8" - 3/16" - 1/4"
• Pressing force of 56 ton with working pressure of 500 bar.
• Available 3 types of clamp, diameter 6.5 - 10 - 14 mm.
• Measures: 267 x 300 x 237 mm (+95 mm for the micrometer).
• Weight 15 Kg.
• Operation : the hydraulic press machine is provided with a 700 bar pump suitable for the manual operation.

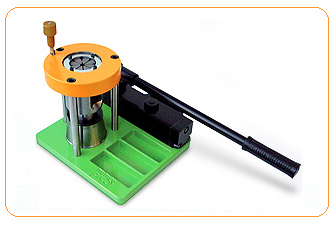

Manual Hydraulic Press
In order to increase the productivity of the machine, it is possible to have an automatic operation with an enclosed quick coupling on which is possible to connect a pressing multiplier air/fluid (as in the picture), or to connect to a every hydraulic power pack.
