Bulkhead Union






Bulkhead Union Offered by us are in comprehensive range. These Bulkhead Union finds its wide application in the tube fittings for connecting purpose. These Bulkhead Union Connector are manufactured using high quality raw materials.

Application Areas of Bulkhead Union :

• Water treatment plant
• Oil industries
• Household purposes

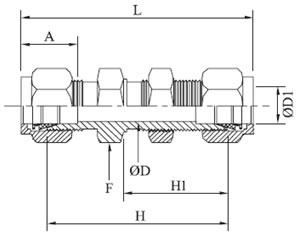

IMPERIAL

PART NO.

ØD1
Imperial

ØD

F
Hex

A
inch

L
inch

Panel
Hole Size

Max Panel
Thickness

H
inch

H1
mm

JE/BU/2I

1/8

0.09

1/2

0.50

1.24

13/64

0.12

23.87

13.46

JE/BU/3I

3/16

0.12

9/16

0.54

2.11

25/64

0.50

40.38

25.40

JE/BU/4I

1/4

0.19

5/8

0.60

2.27

29/64

0.40

42.92

26.16

JE/BU/5I

5/16

0.25

11/16

0.64

2.39

33/64

0.44

45.97

28.44

JE/BU/6I

3/8

0.28

3/4

0.66

2.45

37/64

0.44

47.49

29.46

JE/BU/8I

1/2

0.41

15/16

0.90

2.80

49/64

0.50

50.80

31.75

JE/BU/10I

5/8

0.50

1-1/16

0.96

2.86

57/64

0.50

52.32

32.51

JE/BU/12I

3/4

0.62

1-3/16

0.96

3.11

11/64

0.66

58.67

37.33

JE/BU/16I

1

0.88

1-5/8

1.23

3.77

121/64

0.75

71.37

45.21

JE/BU/20I

1-1/4

1.09

1-7/8

1.62

4.85

141/64

0.75

78.99

47.75

JE/BU/24I

1-1/2

1.34

2-1/4

1.97

5.48

161/64

0.75

84.83

49.27

JE/BU/32I

2

1.81

2-3/4

2.66

7.10

241/64

0.75

105.66

56.38



METRIC

PART NO.

ØD1
Metric

ØD

F
Hex

A
mm

L
mm

Panel
Hole Size

Max Panel
Thickness

H
mm

H1
mm

JE/BU/4M

4

2.4

14

13.2

53.6

9.9

12.7

40.4

25.4

JE/BU/6M

6

4.8

16

15.3

57.7

11.5

10.2

42.9

26.2

JE/BU/8M

8

6.4

18

16.2

61.0

13.1

11.2

46.0

28.6

JE/BU/10M

10

7.9

22

17.2

63.7

16.3

11.2

48.5

29.4

JE/BU/12M

12

9.5

24

22.8

71.0

19.5

12.7

50.8

31.8

JE/BU/14M

14

11.1

27

24.4

72.5

22.5

12.7

52.3

32.5

JE/BU/15M

15

11.9

27

24.4

72.5

22.8

12.7

52.3

32.5

JE/BU/16M

16

12.7

27

24.4

72.5

22.8

12.7

52.3

32.5

JE/BU/18M

18

15.1

30

24.4

78.9

26.0

16.8

58.7

37.3

JE/BU/20M

20

15.9

35

26.0

84.5

29.0

19.0

64.3

42.9

JE/BU/25M

25

21.8

40

31.2

96.0

33.7

19.0

71.4

45.2

JE/BU/30M

30

26.2

50

39.6

123.7

40.5

19.0

82.3

49.5

JE/BU/32M

32

28.6

50

42.0

128.3

42.5

19.0

82.3

49.5

JE/BU/38M

38

33.7

60

49.4

144.6

50.5

19.0

89.4

51.5
